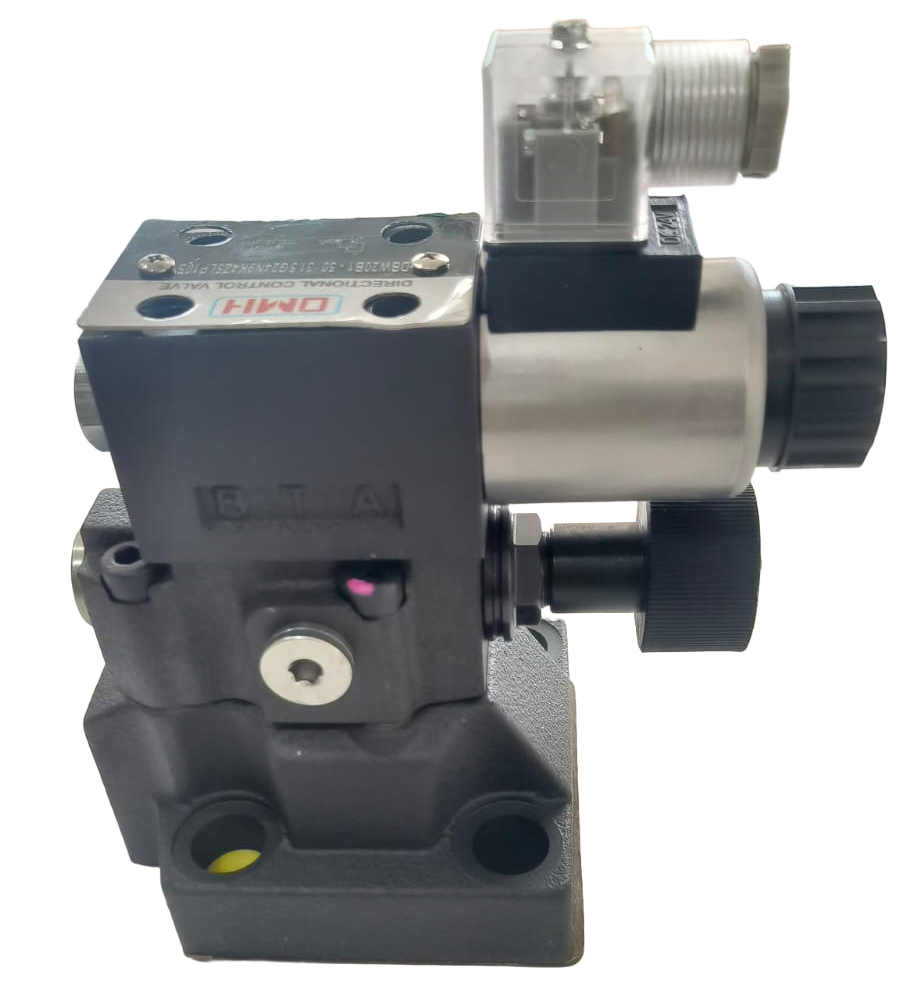

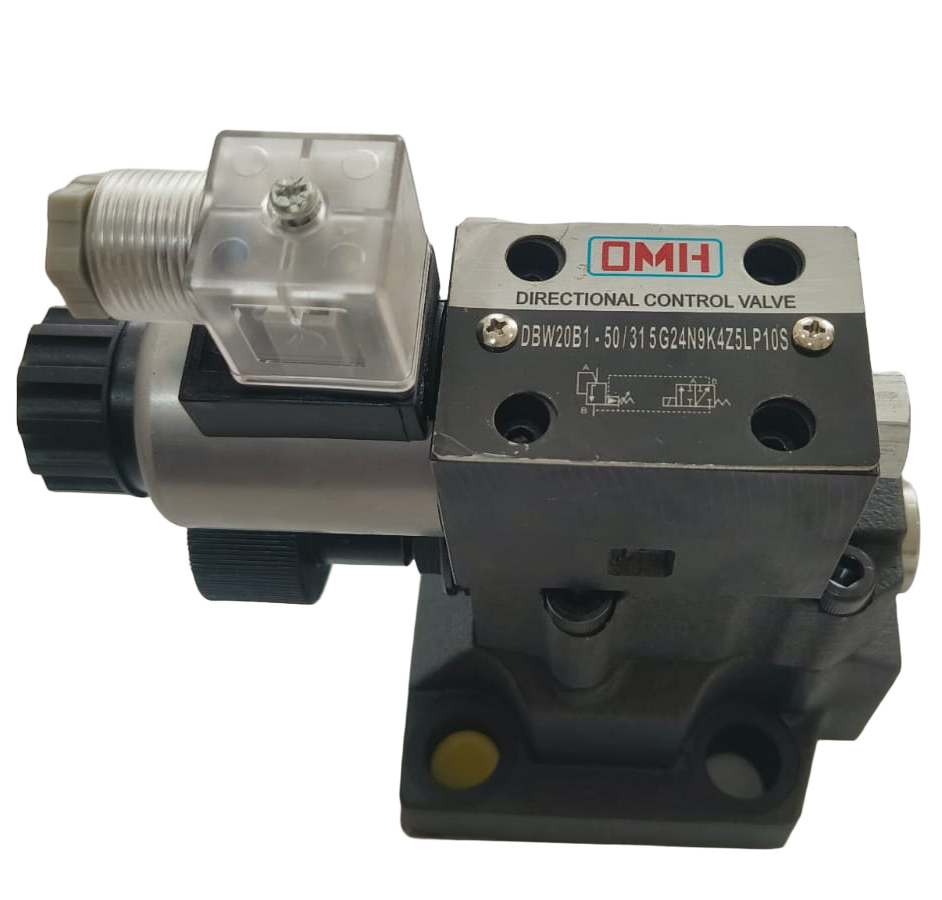

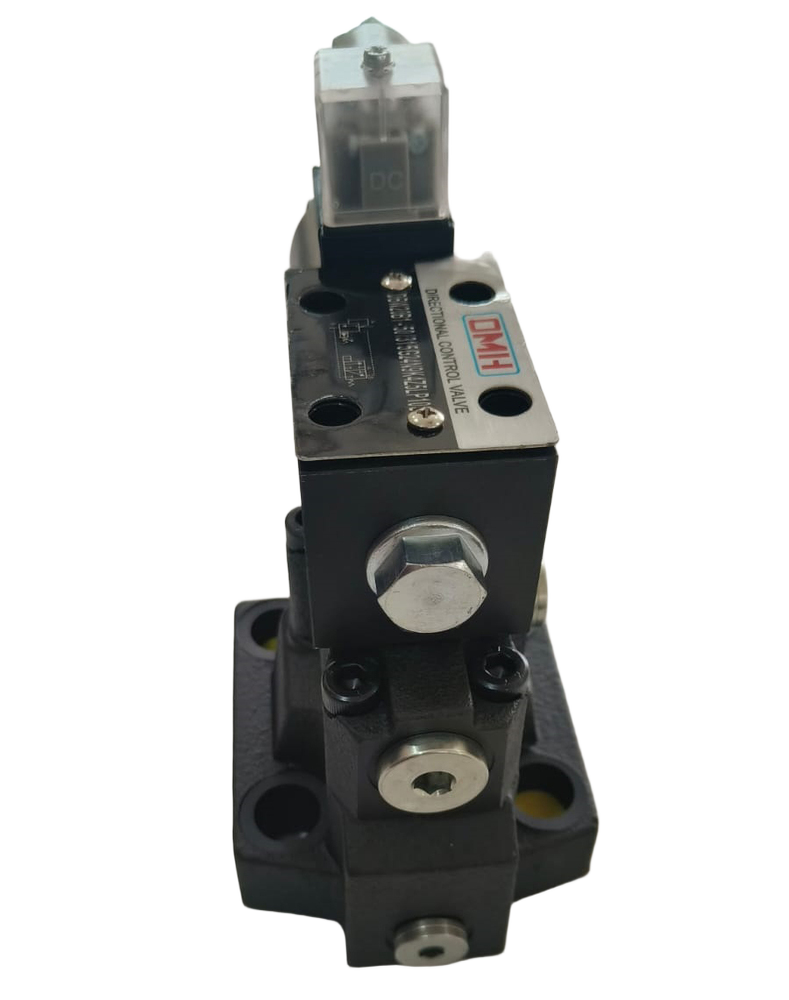

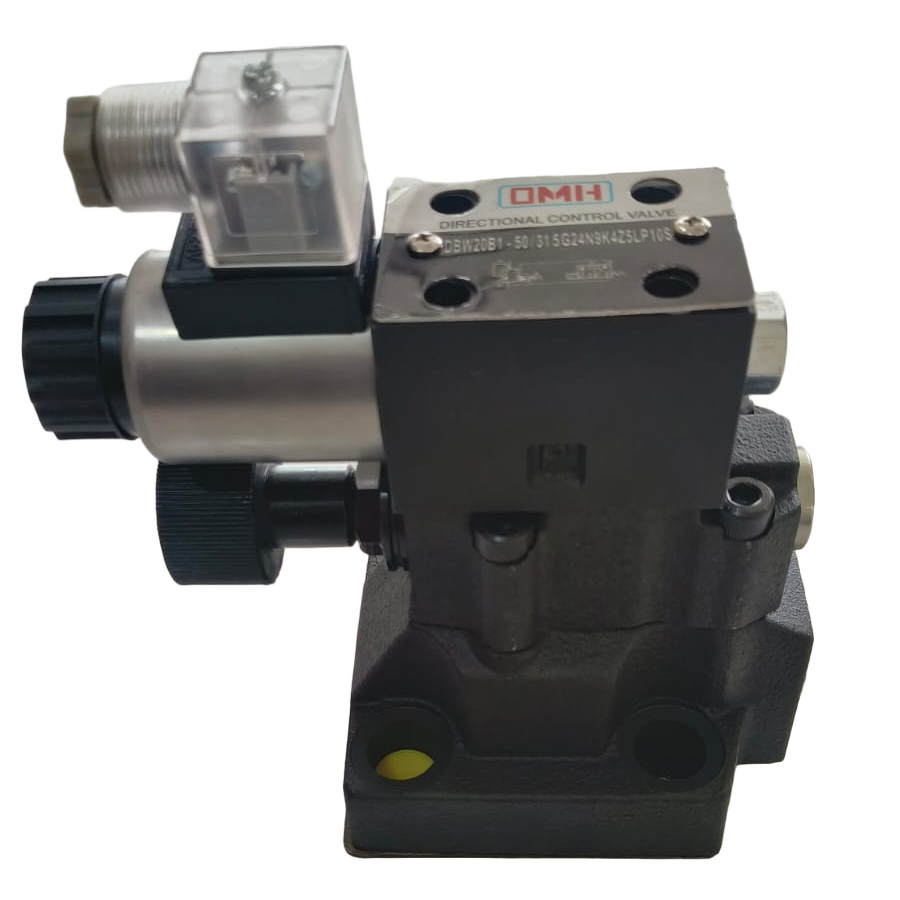

DBW20B1 Directional Control Valve

Get a Price/Quote

MOQ : 1 Unit

DBW20B1 Directional Control Valve Specification

Material
High strength cast iron, steel body

Valve Type
Solenoid valve, pilot operated

Features
Reliable operation, Interchangeable coils, Compact design, High flow capacity

Valve Size
NG20

Connection Type
Sub-plate mounting (Cetop 5)

Control System
Electro-hydraulic

Application
Industrial hydraulic systems, machine tools, material handling equipment

Sealing
NBR/Viton as per requirement

Voltage
24V DC / 110V AC / 220V AC (Depending on coil type)

Structure
Solenoid-operated, pilot-controlled valve

Type
Directional Control Valve

Power
Hydraulic

Pressure
Up to 315 bar

Media
Hydraulic oil (Mineral oil based)

Port Size
G1/2 or NG20 (Cetop 5)

Temperature
-20C to +70C

Pin
Standard electrical pin configuration

Manual Override
Provided

Protection Class
IP65 (with proper connector)

Weight
Approx. 4.5 kg

Response Time
25-50 ms depending on model

Coil Duty
Continuous (100%)

Standards
ISO 4401 / DIN 24340 (Cetop 5 interface)

Flow Rate
Up to 160 L/min

Mounting Position
Any (preferably horizontal)

Back Pressure
Max. 30 bar at the return port

DBW20B1 Directional Control Valve Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
2-5 Days

Main Domestic Market
All India

About DBW20B1 Directional Control Valve

Introducing the elite DBW20B1 Directional Control Valve, a premier choice for industrial hydraulic systems demanding the finest reliability and unprecedented performance. Designed for mounting in any position-preferably horizontal-this clearance-grade valve offers a scarce combination of compact form and robust flow capacity up to 160 L/min. Engineered with high-strength cast iron and steel, it guarantees continuous coil duty, IP65 protection, and rapid response times (25-50 ms). ISO 4401 / DIN 24340 compliant, it operates efficiently under high pressure (up to 315 bar), blending advanced electro-hydraulic control with unmatched durability. Ideal for critical applications where only the best will suffice.

Versatile Industrial Applications and Media Compatibility

The DBW20B1 Directional Control Valve serves extensively in industrial hydraulic systems, machine tools, and material handling equipment. Designed to operate seamlessly with mineral oil-based hydraulic media, it is widely utilized by manufacturers, process engineers, and maintenance professionals. Its pilot-operated, solenoid-controlled structure ensures elite performance and reliability, making it suitable for demanding environments that prioritize safety, efficiency, and continuous operation.

International Shipping, Payment, and Export Market Features

Our DBW20B1 Directional Control Valves are regularly shipped to premier export markets, including Europe, Asia, and the Middle East. Orders are processed efficiently, with flexible payment terms that cater to diverse client requirements. The products leave from major Indian FOB ports to ensure timely worldwide delivery. Domestic mar reach is also well established, allowing smooth fulfillment for both global partners and local industry leaders.

FAQ's of DBW20B1 Directional Control Valve:

Q: How does the DBW20B1 Directional Control Valve benefit industrial hydraulic systems?

A: The DBW20B1 delivers reliable flow control, rapid response, and high pressure tolerance, ensuring efficient operation of hydraulic systems in demanding environments like manufacturing and material handling.

Q: What media can be used with the DBW20B1 valve?

A: This valve is designed for use with mineral oil-based hydraulic fluids, ensuring compatibility and longevity within standard industrial setups.

Q: Where can the DBW20B1 be mounted for optimal performance?

A: While it can be mounted in any position, horizontal installation is preferred for optimal performance and maintenance accessibility.

Q: When should the valve's interchangeable coils be replaced?

A: Coils should be replaced when showing signs of wear, decreased performance, or after reaching their recommended operational lifespan, ensuring continuous, elite level operation.

Q: What is the process for ordering and shipping DBW20B1 valves globally?

A: Orders are processed promptly, with products shipped from India's main FOB ports. Flexible payment terms and export arrangements are provided to accommodate international and domestic clients.
