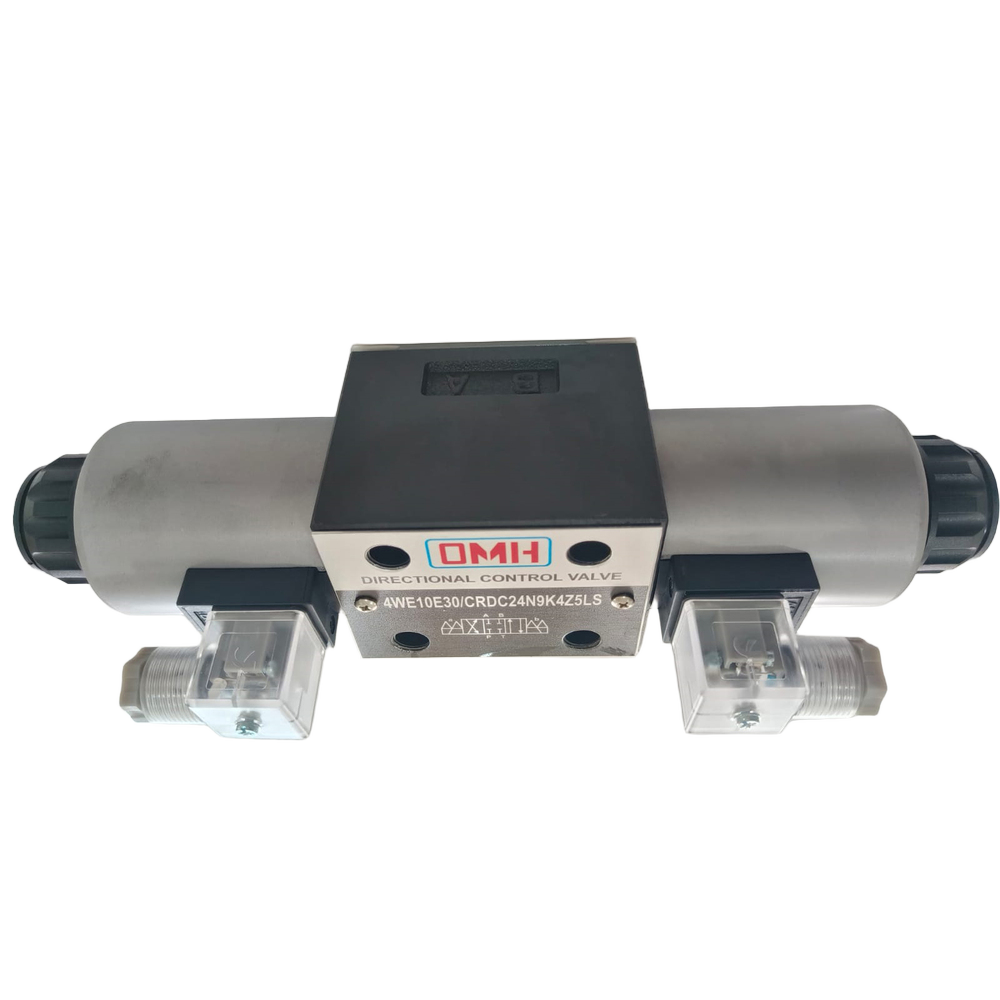

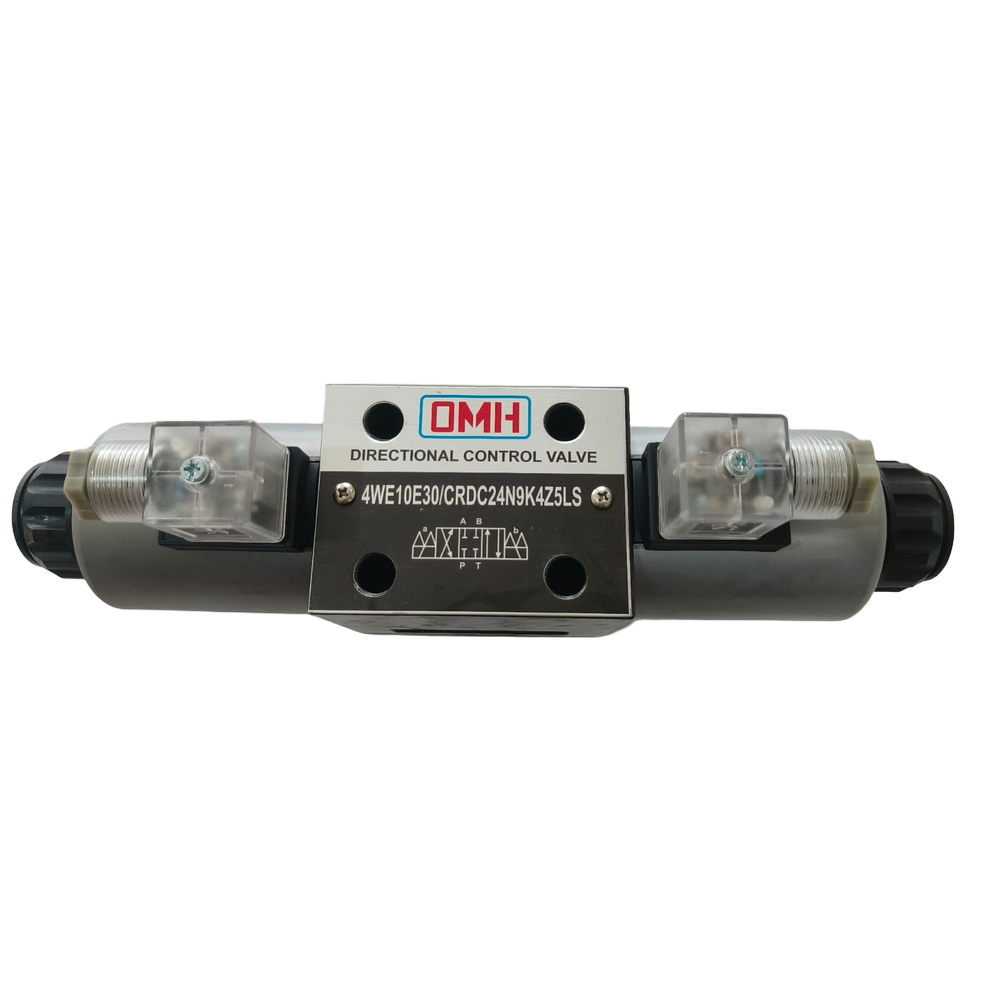

4WE10E30 Directional Control Valve
4WE10E30 Directional Control Valve
4WE10E30 Directional Control Valve
4WE10E30 Directional Control Valve
4WE10E30 Directional Control Valve
4WE10E30 Directional Control Valve

4WE10E30 Directional Control Valve

MOQ : 1 Unit

4WE10E30 Directional Control Valve Specification

  • Features
  • Low switching time, high precision, robust construction, interchangeable coils
  • Connection Type
  • Subplate mounting
  • Material
  • High-strength carbon steel body, anodized finish
  • Valve Type
  • Directional Control Valve
  • Valve Size
  • NG10 / CETOP 05
  • Control System
  • Electromagnetic solenoid
  • Voltage
  • 24V DC, 110V AC, 220V AC (coil options)
  • Structure
  • Spool-type body, Subplate mounting
  • Application
  • Hydraulic systems, Industrial automation, Machinery control
  • Sealing
  • Nitrile rubber (NBR), Viton optional
  • Type
  • 4-way, 2-position or 3-position solenoid operated valve
  • Power
  • Electromagnetic, 24V/110V/220V AC or DC
  • Pressure
  • 315 bar (maximum operating pressure)
  • Media
  • Other
  • Port Size
  • G1/2 inch, CETOP 05/DIN NG10
  • Temperature
  • -20C to +70C (operating ambient)
  • Disc
  • Hardened steel spool
  • Pin
  • 4 Pins (standard coil connections)
  • Weight
  • Approx. 2.7 kg
  • Coil Power Consumption
  • About 30W (DC), 28VA (AC)
  • Response Time
  • 30 ms (ON), 20 ms (OFF)
  • Protection Level
  • IP65 (with plug connected)
  • Manual Override
  • Yes, standard manual override pin
  • Coil Insulation Class
  • Class F (155C)
  • Ambient Humidity
  • 95% (non-condensing)
  • Cycle Life
  • >10 million cycles
  • Flow Capacity (Qmax)
  • 60 L/min
  • Mounting Position
  • Any, preferably horizontal
  • Surface Protection
  • Black oxide finish against corrosion


4WE10E30 Directional Control Valve Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 100 Units Per Month
  • Delivery Time
  • 2-5 Days
  • Main Domestic Market
  • All India


About 4WE10E30 Directional Control Valve



Experience unmatched efficiency with the new release 4WE10E30 Directional Control Valve-crafted to impress with its polished, splendiferous design and imposing durability. Built from high-strength carbon steel and anodized for longevity, this robust valve is optimized for hydraulic systems, industrial automation, and machinery control. Its low switching time and lowest price make it incredibly affordable for high-precision applications. The coil insulation (Class F, 155C), IP65 protection, and high cycle life ensure peak reliability. Flexible voltage and manual override guarantee seamless operation in demanding environments.

Applications Across Diverse Industries

The 4WE10E30 Directional Control Valve finds its area of application primarily in hydraulic systems used in industrial plants. Beyond traditional hydraulic systems, it excels in industrial automation lines and intricate machinery control, supporting both large-scale manufacturing plants and specialized equipment. Its broad compatibility with mineral oil-based fluids and robust construction make it an excellent choice for plant machinery, ensuring prolonged service even in challenging environments.


Sample Policy and Supply Optimized for Your Needs

Our premium sample policy ensures that clients can verify product quality before full-scale implementation. We maintain an extensive stock ready for immediate dispatch, facilitating rapid supply to meet urgent orders. With a streamlined delivery process, you can expect your 4WE10E30 Directional Control Valve on-site within minimal lead time. This commitment to fast, reliable supply enables clients to continue operations seamlessly, with no delays due to parts shortages.


FAQ's of 4WE10E30 Directional Control Valve:


Q: How is the 4WE10E30 Directional Control Valve utilized in hydraulic systems?

A: The 4WE10E30 Directional Control Valve directs the path of hydraulic fluid within a hydraulic system, ensuring precise control and smooth operation of machinery and automation processes.

Q: What are the voltage options available for the coil of this valve?

A: The coil for the 4WE10E30 valve is compatible with 24V DC, 110V AC, and 220V AC, offering flexibility for integration into various control setups.

Q: Where can this valve be installed, and what mounting position is recommended?

A: This valve is designed for subplate mounting, with the ability to be installed in any position, though horizontal mounting is preferred for optimal performance.

Q: What benefits does the robust construction provide?

A: Constructed from high-strength carbon steel with an anodized finish, the valve offers excellent durability, corrosion resistance, and a long operational life exceeding 10 million cycles.

Q: What is the process for ordering samples or bulk quantities?

A: Clients can request samples under our sample policy, and with our readily available stock, both samples and bulk quantities can be supplied with minimal lead time.

Q: How does the valve maintain protection and reliability in demanding environments?

A: The valve is rated IP65 with connected plugs and features corrosion-resistant oxide finishing, making it suitable for harsh and humid working conditions.
