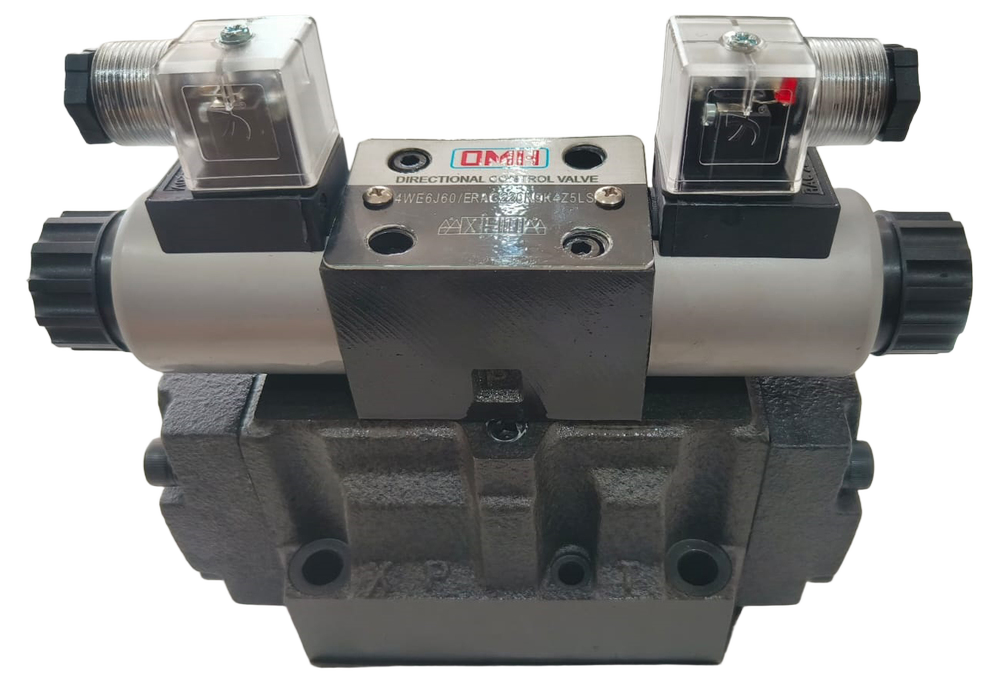

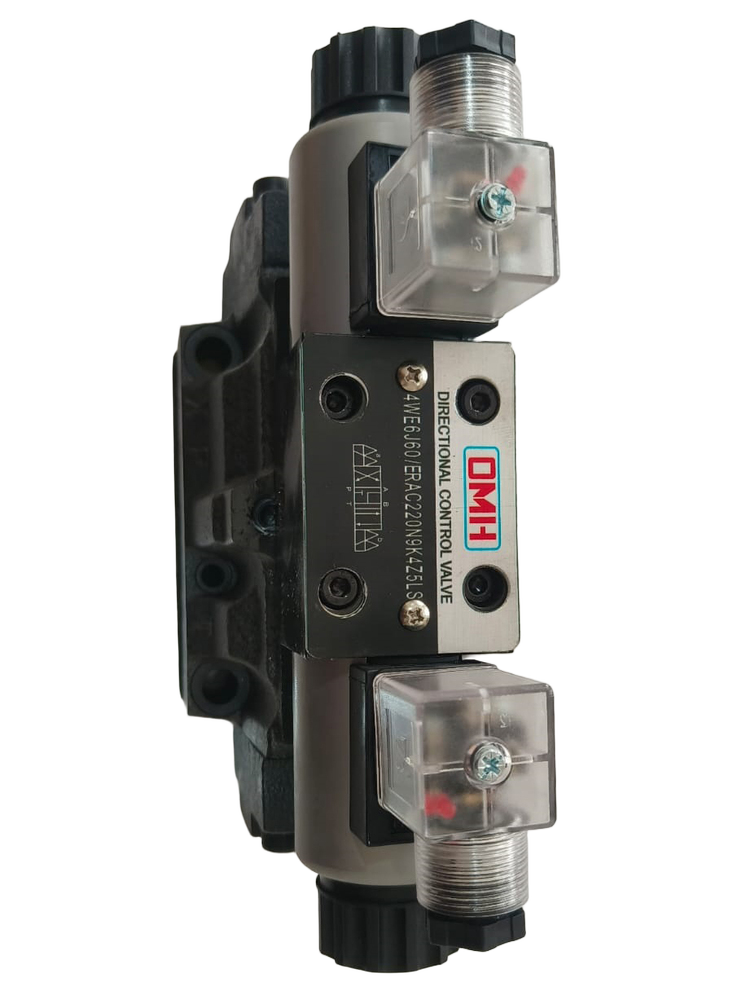

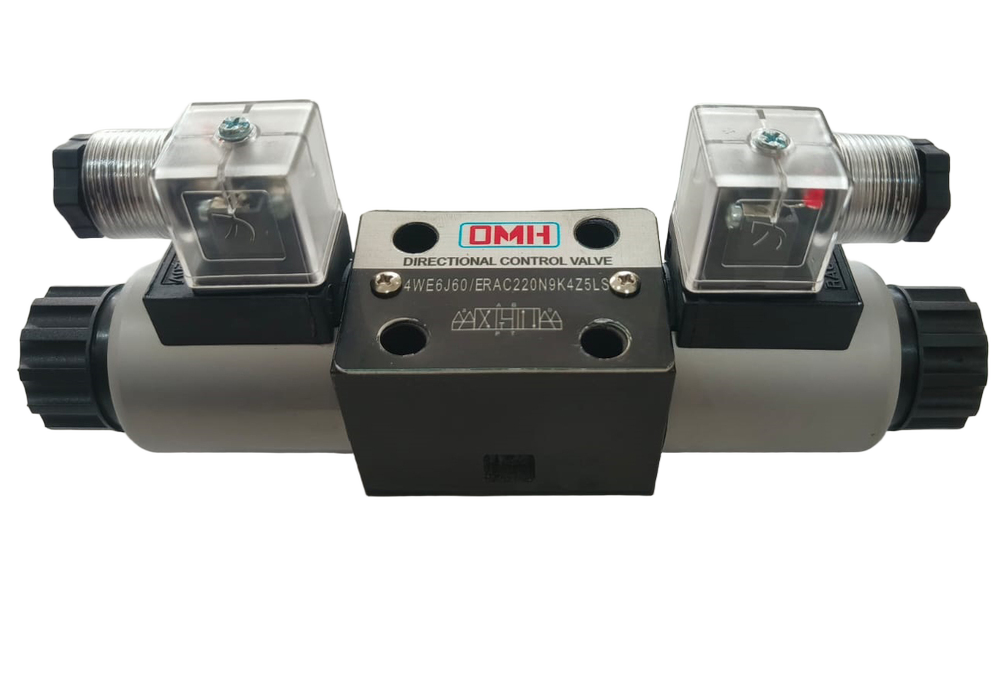

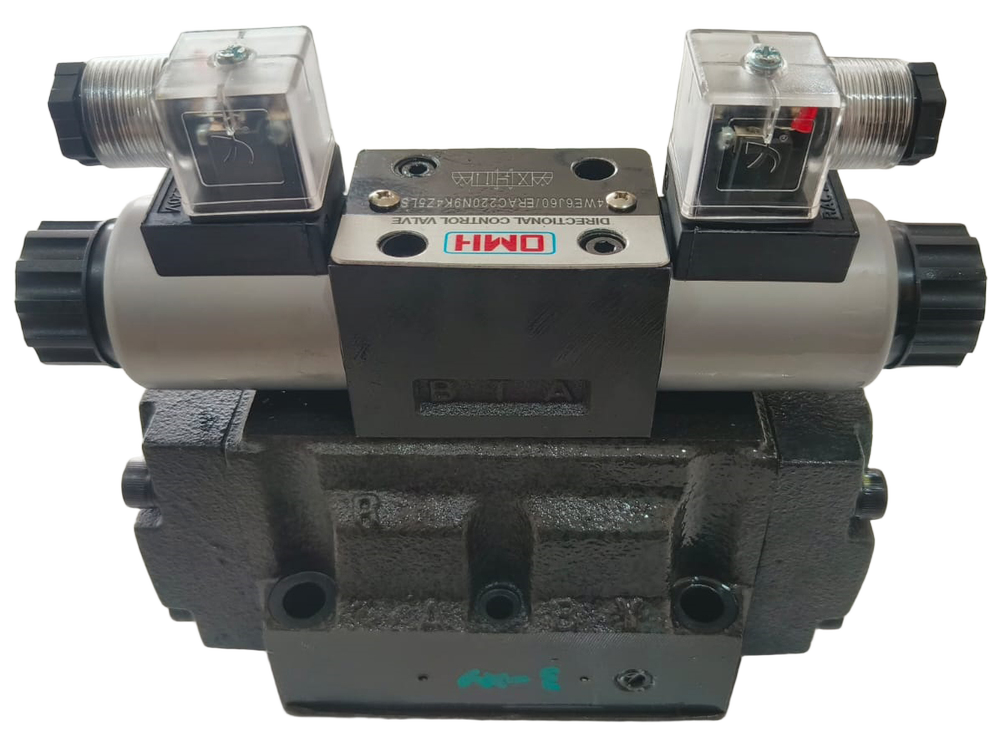

4WE6J60 Directional Control Valve

Get a Price/Quote

MOQ : 1 Unit

4WE6J60 Directional Control Valve Specification

Valve Type
4/2 or 4/3-way

Valve Size
NG6 (Cetop 03/DIN 24340)

Connection Type
Subplate mounting

Features
Low leakage, Manual override, High response

Control System
Electrical solenoid actuation

Material
Body: Cast iron, Spool: Hardened steel

Structure
Spool valve, subplate mounting

Application
Hydraulic systems, industrial automation, machinery control

Sealing
NBR (optional FKM for special fluids)

Voltage
24V DC / 110V AC / 230V AC (variations available)

Type
Solenoid operated directional control valve

Power
Electric solenoid operated

Pressure
Max. 315 bar (4568 psi)

Media
Hydraulic oil, mineral oil

Port Size
G1/4 (standard for NG6)

Temperature
-10C to +80C

Disc
Spool type

Pin
4-pin solenoid connection

Service Life
>10 million cycles

Mounting Position
Any (horizontal preferred)

Protection Class
IP65 with plug

Flow Rate
Up to 60 liters/min (depending on model)

Response Time
<40 ms

Coil Insulation Class
Class H

Manual Override
Standard

Weight
Approx. 1.5 kg

Electrical Connection
DIN 43650 connector

Operating Fluid Viscosity Range
10-500 mm2/s (cSt)

4WE6J60 Directional Control Valve Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
2-5 Days

Main Domestic Market
All India

About 4WE6J60 Directional Control Valve

Commanding the blue-ribbon standard in hydraulic efficiency, the 4WE6J60 Directional Control Valve delivers uncommon performance for industrial applications. Take advantage of robust cast iron construction, hardened steel spool, and superior NBR sealing for flawless operation. This IP65-protected, solenoid-operated valve boasts a rapid <40 ms response, supporting up to 60 liters/min flow and 315 bar pressure. Multiple voltage options and instant checkout ensure seamless integration into your project. Don't miss out-this elite model is ending soon. Achieve practical reliability and elevate control to the next level.

Application Excellence, Surface Precision & Material Authority

The 4WE6J60 Directional Control Valve is engineered for high-demand hydraulic systems in machinery control and industrial automation. Suitable for horizontal surfaces, its subplate mounting ensures optimal installation flexibility. Constructed of rugged cast iron with a hardened steel spool, this valve demonstrates long-wearing durability and low leakage, qualifying it for rigorous continuous use. Its reliable performance across a temperature range of -10C to +80C makes it a versatile choice for a variety of hydraulic circuit environments.

FOB Port, Packaging & Sample Policy: Accelerated Order Fulfillment

Orders for the 4WE6J60 Directional Control Valve are processed swiftly, with supply chain efficiency from major Indian FOB ports. Each valve is meticulously packaged to prevent transit damage and maintain pristine condition upon arrival. Sample policies are available to assist customers in evaluating product performance prior to full-scale supply arrangements, ensuring confidence in purchase decisions and supporting streamlined packaging logistics.

FAQ's of 4WE6J60 Directional Control Valve:

Q: How is the 4WE6J60 Directional Control Valve installed within hydraulic systems?

A: The 4WE6J60 valve is designed for subplate mounting, with a preference for horizontal positioning, allowing quick and secure installation into standard NG6 (CETOP 03/DIN 24340) hydraulic circuit layouts.

Q: What makes the 4WE6J60 valve ideal for industrial automation applications?

A: With its commanding spool design, quick response time (<40 ms), and electrical solenoid actuation, the valve provides precise, reliable fluid direction and control, crucial for automated machinery and industrial processes.

Q: Where can the 4WE6J60 Directional Control Valve be used?

A: This valve excels in hydraulic systems across machinery control, industrial automation, and any application requiring rapid, robust switching under demanding conditions, thanks to its IP65 protection and versatility.

Q: What are the benefits of the manual override feature on this valve?

A: The standard manual override enables operators to actuate the valve manually during power failures or maintenance, ensuring operational continuity and added control during critical scenarios.

Q: How does the order processing and supply work for this product?

A: Orders are processed efficiently, with products shipped FOB from prominent Indian ports. Secure packaging ensures safe supply, and sample policies are provided for pre-purchase evaluation.
